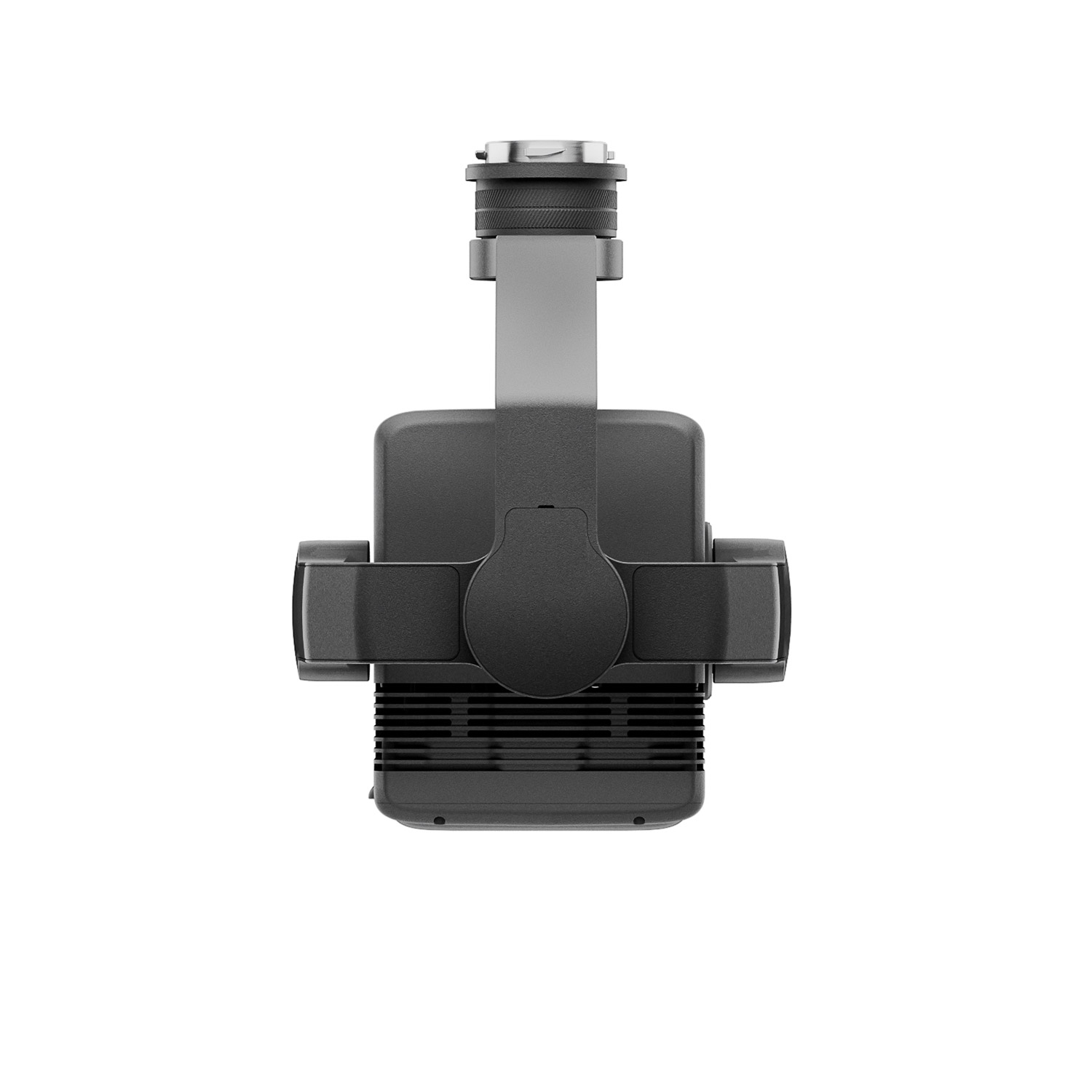

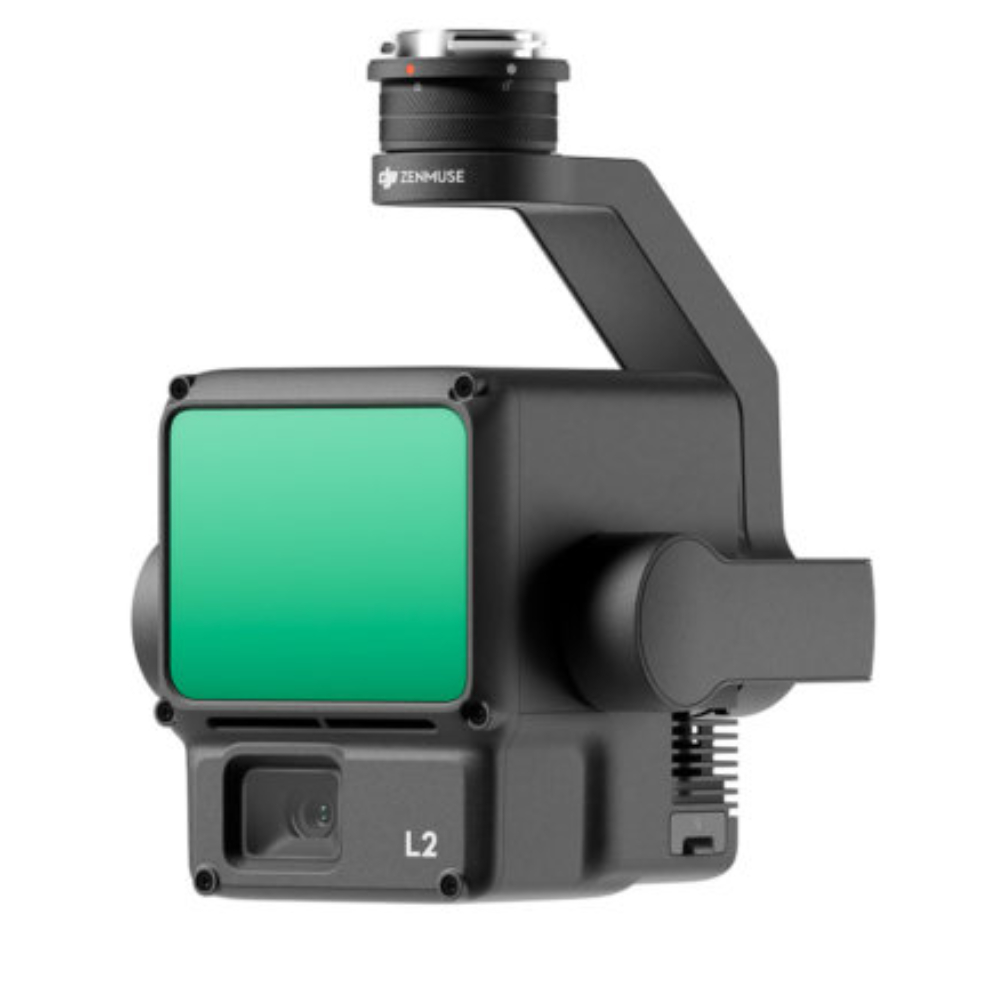

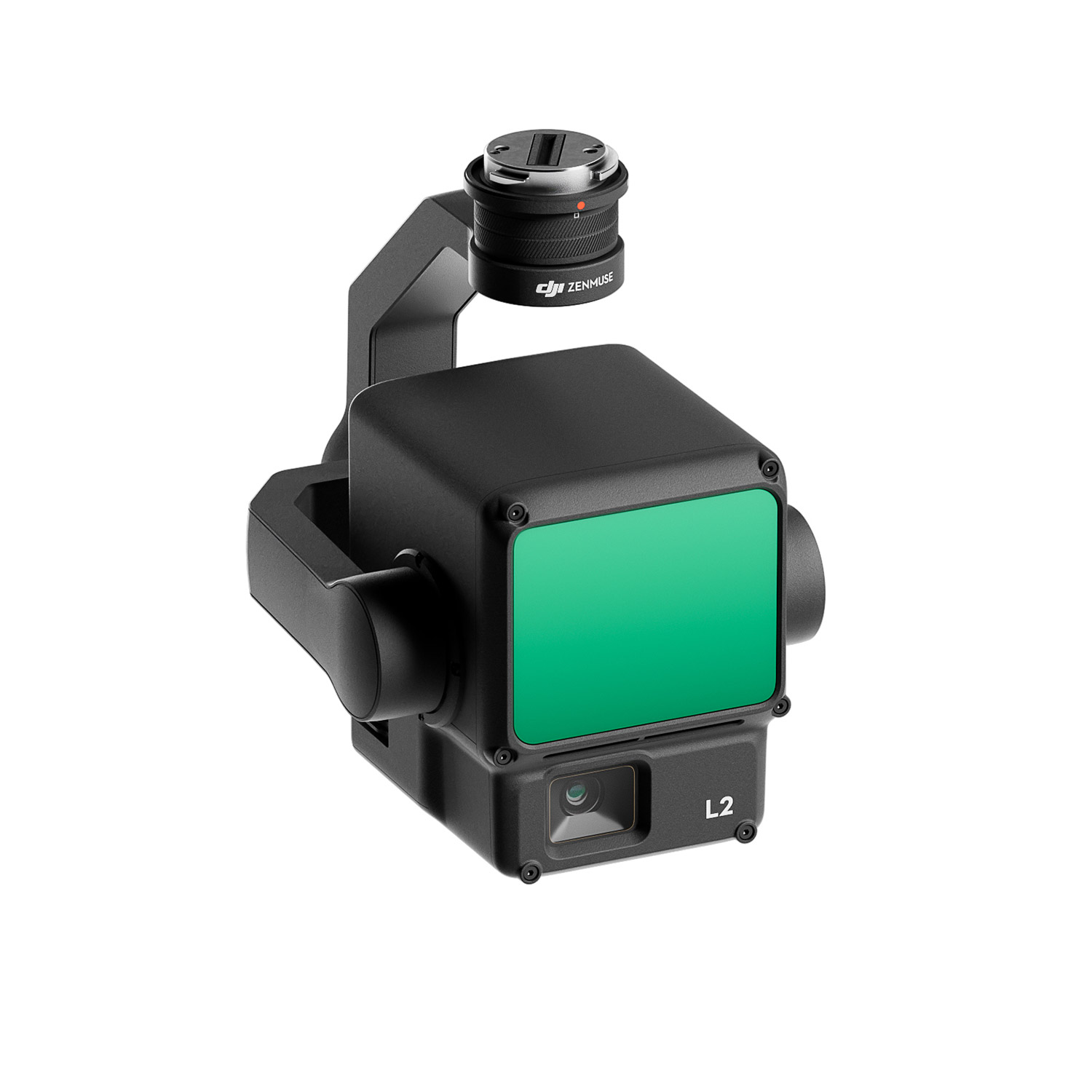

DJI Zenmuse L2

£9,450.83 (+VAT)

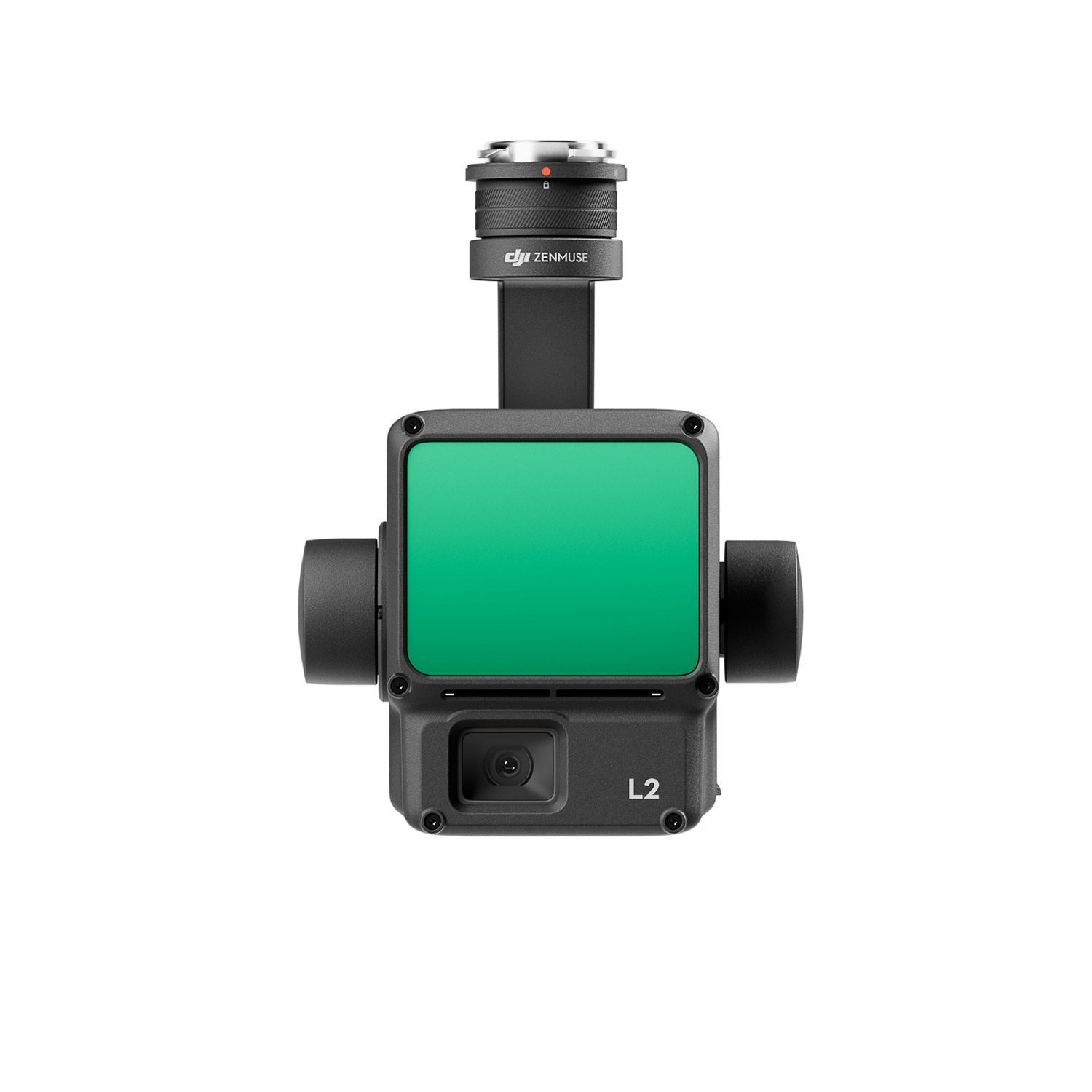

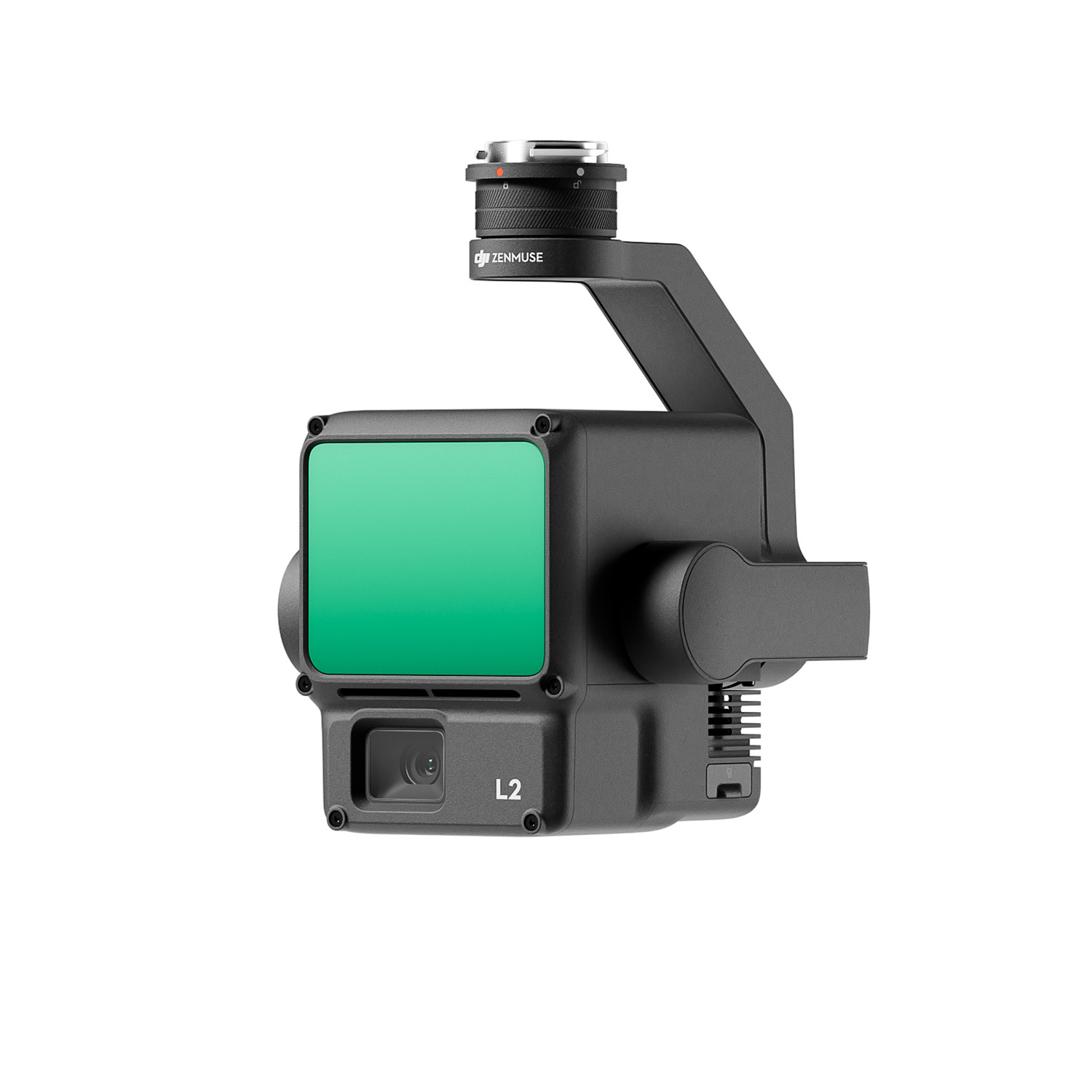

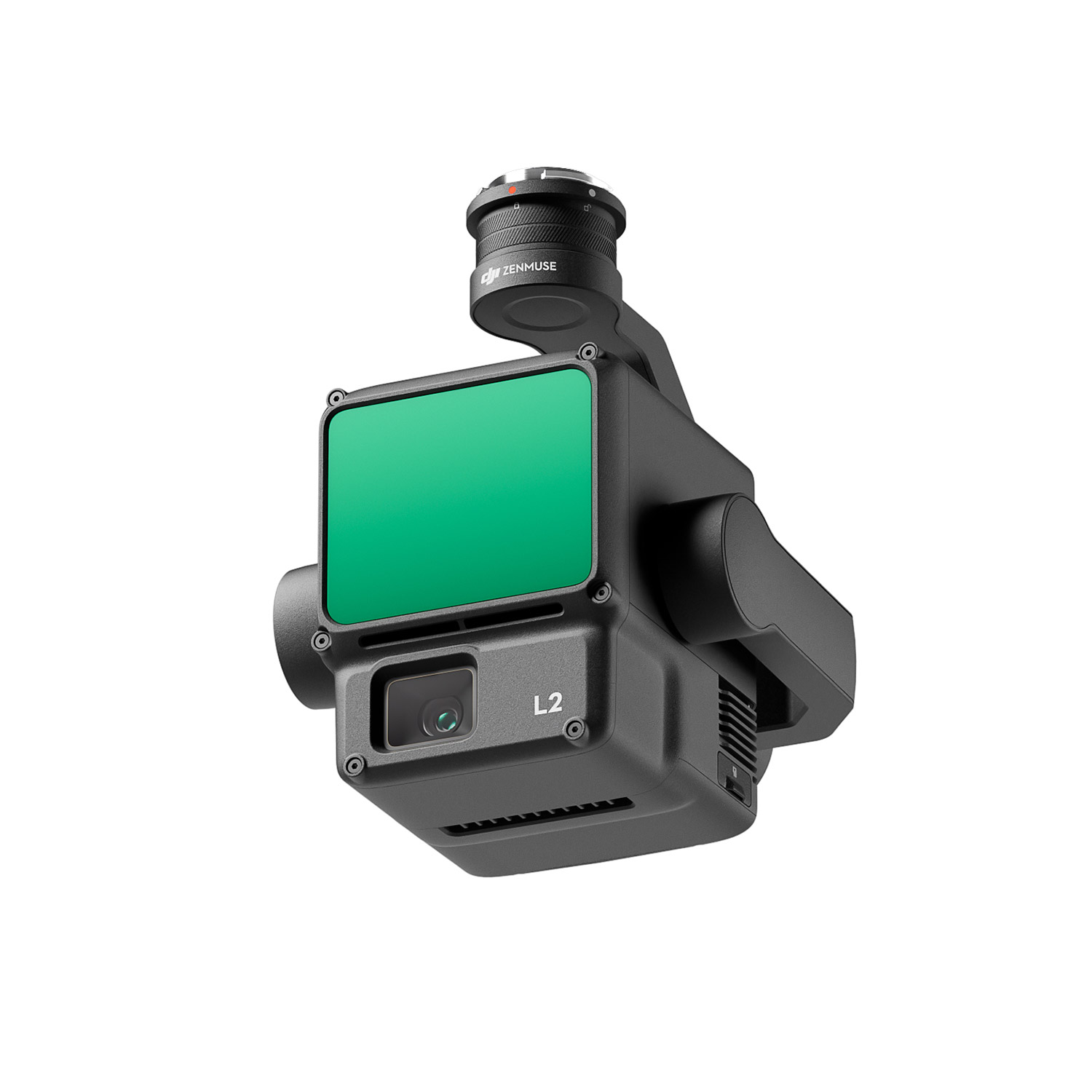

Zenmuse L2 – High-Precision Aerial LiDAR System


Zenmuse L2 integrates frame LiDAR, a self-developed high-accuracy IMU system, and a 4/3 CMOS RGB mapping camera, providing DJI flight platforms with more precise, efficient, and reliable geospatial data acquisition. When used with DJI Terra, it delivers a turnkey solution for 3D data collection and high-accuracy post-processing.

30% Detection Range Increase

L2 can detect from 250 meters at 10% reflectivity and 100 klx, and up to 450 meters at 50% reflectivity and 0 klx. The typical operational altitude now extends up to 120 meters, notably enhancing operational safety and efficiency.

Smaller Laser Spots, Denser Point Clouds

With a reduced spot size of 4Ă—12 cm @100m, only a fifth of that of L1, L2 not only detects smaller objects with more details but can also penetrate denser vegetation, generating more accurate digital elevation models (DEM).

Supports 5 Returns

In densely vegetated areas, L2 can capture more ground points beneath the foliage.

Effective Point Cloud Rate: 240,000 pts/s

In both single and multiple return modes, L2 can reach a max point cloud emission rate of 240,000 points per second, allowing the acquisition of more point cloud data in a given time frame.

Two Scanning Modes

L2 supports two scanning modes, offering flexibility for users based on their task demands. In repetitive scanning mode, L2’s LiDAR can achieve more uniform and accurate point clouds while meeting high-precision mapping requirements. In non-repetitive scanning mode, it offers deeper penetration for more structural information, making it suitable for power line inspection, forestry surveying, and other scenarios.

Frame-based Design

The frame-based design results in an effective point cloud data rate of up to 100%. Together with a three-axis gimbal, it brings more possibilities to surveying scenarios.


What Stands Out

High Precision – Vertical Accuracy: 4 cm; Horizontal Accuracy: 5 cm

Exceptional Efficiency – 2.5 km2 covered in a single flight

Superior Penetration – Smaller laser spots, denser point clouds

Detection Range – 250m @10% reflectivity, 100klx; 450m @50% reflectivity, 0klx

5 Returns

Turnkey Solution

Point Cloud LiveView


Compatible drones:

DJI M350 with DJI RC Plus controller

DJI Matrice 300 with RC Plus controller – Please note to use the DJI L2 with the DJI Matrice 300 you will need the DJI RC Plus controller (Sold separately). You will not be able to use the original remote controller that comes with the DJI Matrice 300 after updating the firmware to enable the use of the DJI Matrice 300 with the DJI L2 payload.
